GPS Speed Plus Sensors

Free · No ads · No account

GPS Speed
Plus Sensors

A local, privacy-first dashboard for GPS speed, compass, level and estimated sound.

Coming soon onGoogle Play Dashboard snapshot

✓ This release has no ads, analytics, account, backend, or internet permission.

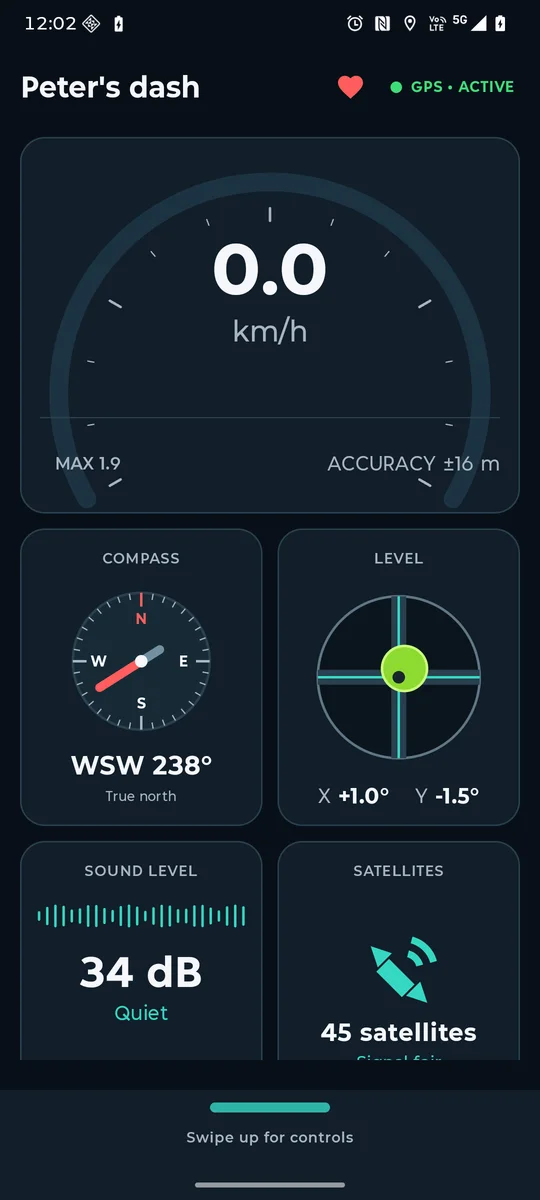

A local, privacy-first dashboard for GPS speed, compass, level and estimated sound.
GPS SPEED72km/h
✓PrivacyPeter's dash is designed to work locally on your device.
GPS SPEEDCOMPASSLEVELSOUND LEVELSATELLITES

ANDROID API · GPS SPEED · COMPASS · LEVEL · SOUND LEVEL

Sensor update rate

GPS, compass and microphone accuracy depends on the phone hardware and environment. Do not use the app as a certified safety or surveying instrument.

GPS SPEED

  • FusedLocationProviderClient · PRIORITY_HIGH_ACCURACY
  • Sensor update rate: Fast — about 0.5 second · Balanced — about 1 second · Battery saver — about 2 seconds
  • Δd ≥ 0.5 m · σlocation ≤ 50 m · EMA α = 0.55 / 0.30 / 0.15

COMPASS

  • Android TYPE_ROTATION_VECTOR
  • SENSOR_DELAY_GAME ≈ 50 Hz · UI ≈ 15 Hz · NORMAL ≈ 5 Hz
  • True north (uses GPS correction): GeomagneticField.declination

LEVEL

  • TYPE_GRAVITY → TYPE_ACCELEROMETER
  • SENSOR_DELAY_GAME ≈ 50 Hz · UI ≈ 15 Hz · NORMAL ≈ 5 Hz
  • Level calibration: atan2 · EMA α = 0.20

SOUND LEVEL

  • AudioRecord · UNPROCESSED → VOICE_RECOGNITION
  • PCM 16-bit mono · 44.1 kHz · 4096 samples ≈ 92.9 ms
  • RMS → estimated dB · ≈ 10.8/s · EMA α = 0.25
⌁

SATELLITES

  • LocationManager · GnssStatus.Callback
  • SATELLITES: N + mean C/N₀ (dB-Hz)
  • f ≠ fixed · onSatelliteStatusChanged → Android/GNSS

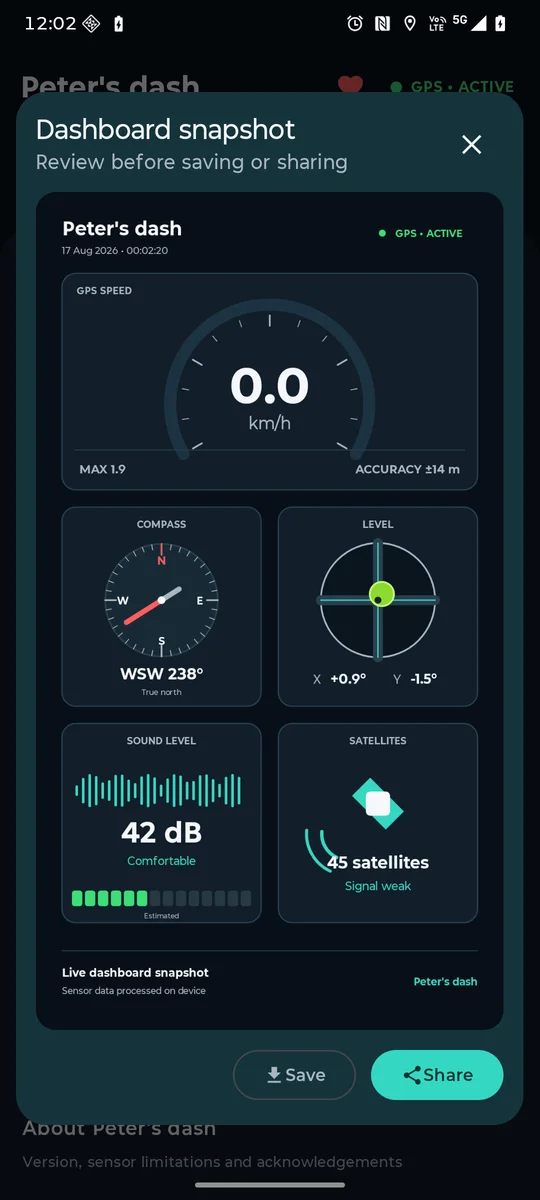

Snapshot

Dashboard snapshot

Review before saving or sharing

GPS SPEED
GPS SPEEDA local, privacy-first dashboard for GPS speed, compass, level and estimated sound.

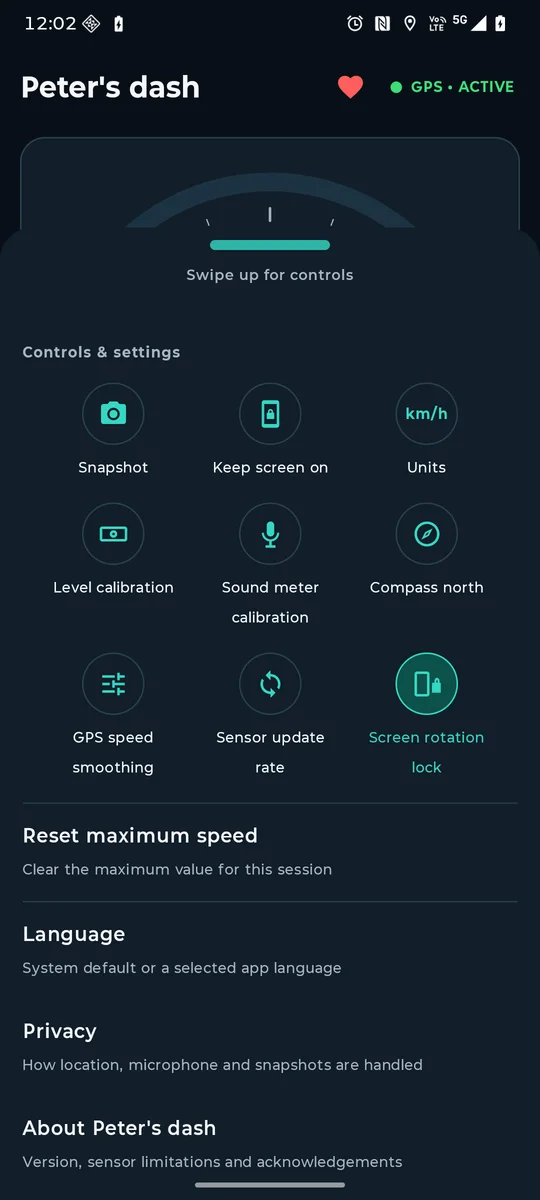

Controls & settings
Controls & settingsSwipe up for controls
Dashboard snapshot
Dashboard snapshotReview before saving or sharing

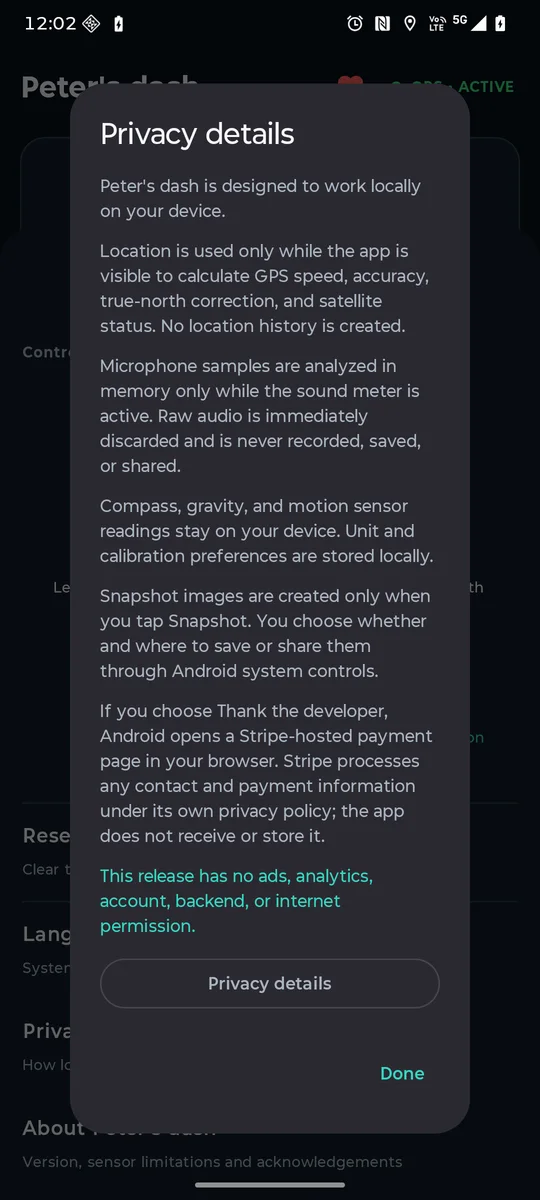

Privacy details
Privacy detailsHow location, microphone and snapshots are handled

Privacy

Privacy details

Peter's dash is designed to work locally on your device.

· Peter's Engineering

01

GPS SPEED

Location is used only while the app is visible to calculate GPS speed, accuracy, true-north correction, and satellite status. No location history is created.

02

SOUND LEVEL

Microphone samples are analyzed in memory only while the sound meter is active. Raw audio is immediately discarded and is never recorded, saved, or shared.

03

COMPASS · LEVEL

Compass, gravity, and motion sensor readings stay on your device. Unit and calibration preferences are stored locally.

04

Snapshot

Snapshot images are created only when you tap Snapshot. You choose whether and where to save or share them through Android system controls.

05

Thank the developer

If you choose Thank the developer, Android opens a Stripe-hosted payment page in your browser. Stripe processes any contact and payment information under its own privacy policy; the app does not receive or store it.

06

Privacy

This release has no ads, analytics, account, backend, or internet permission.

Privacy

GPS, compass and microphone accuracy depends on the phone hardware and environment. Do not use the app as a certified safety or surveying instrument.

GPS Speed Plus Sensors

Peter's Engineering

Contact & collaboration

Interested in partnerships, integrations, localization, device testing or another collaboration? Contact the developer — new ideas are welcome.

Contact the developer
